2D Elevation Views From Point Cloud

St. Eunan’s Cathedral

Service Provided: 2D Elevation Views from Point Cloud Data
Client: Benchmark Surveying & Engineering
Location: Sentry Hill Rd, Letterkenny, Co. Donegal, Ireland
Year: 2025

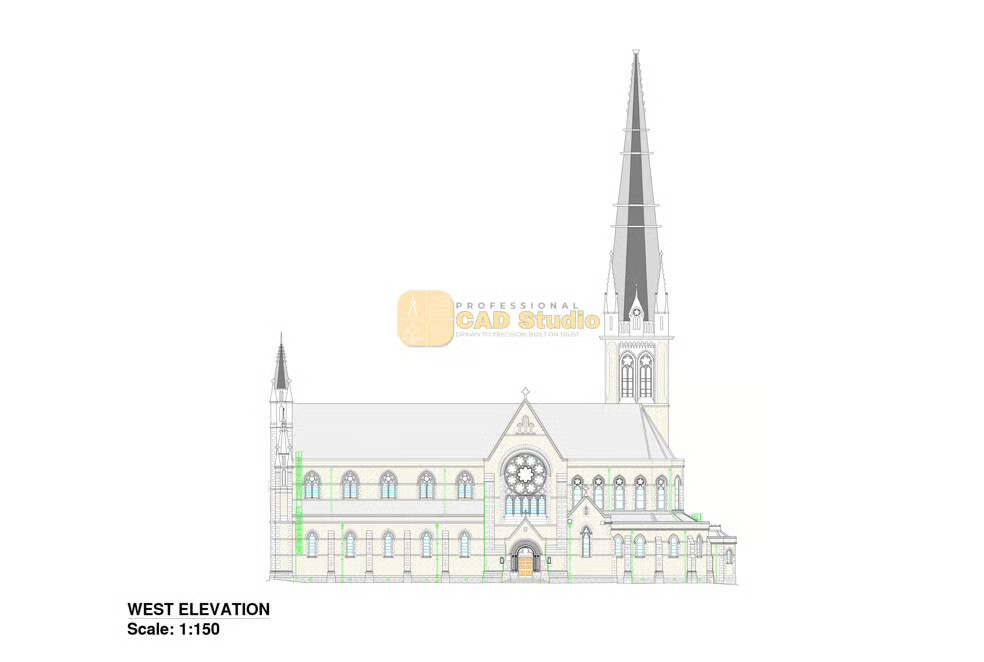

This project involved creating highly detailed elevation drawings of St. Eunan’s Cathedral, a historically significant structure. Using point cloud data captured on-site, I produced all four exterior elevation views, focusing on architectural accuracy and heritage preservation.

elevation-2-AoPW5191Jquor7Ob_converted church-m2W8wkZDGJfj33gk_converted
Untitled design (5) Untitled design (6)
Commercial Building in Milan, Italy

Service Provided: 2D Elevation View from Point Cloud Data
Client: Tiziano Radice
Location: Via Giulio e Corrado Venini, Milano , Italy
Year: 2023

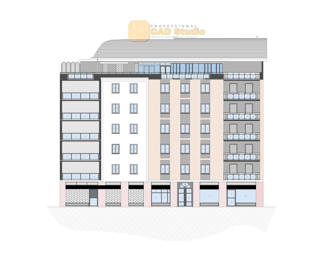

This project involved generating a precise front elevation view of a commercial building located in the heart of Milan, Italy. The client, Tiziano Radice, provided point cloud data of the existing structure.

Ulster University

Service Provided: 2D Elevation Views from Point Cloud Data
Client: Benchmark Surveying & Engineering
Location: Northland Rd, Londonderry, United Kingdom
Year: 2025

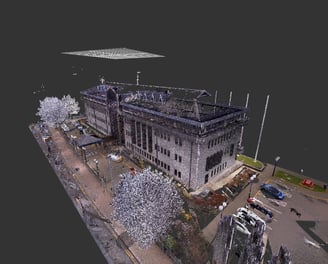

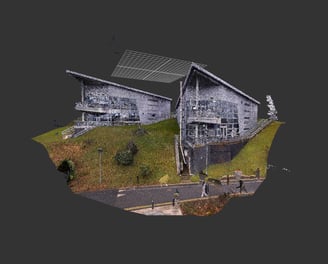

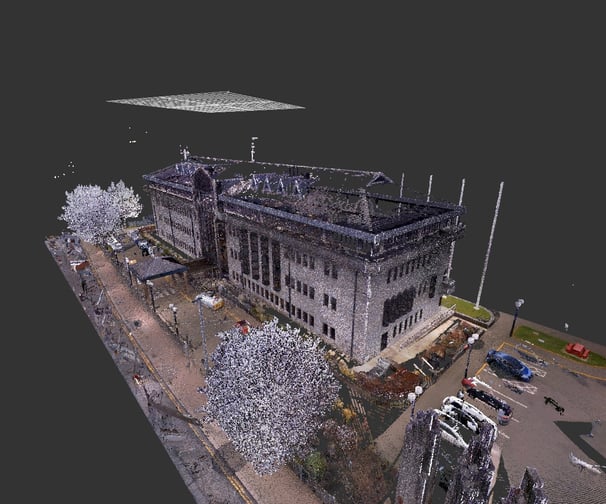

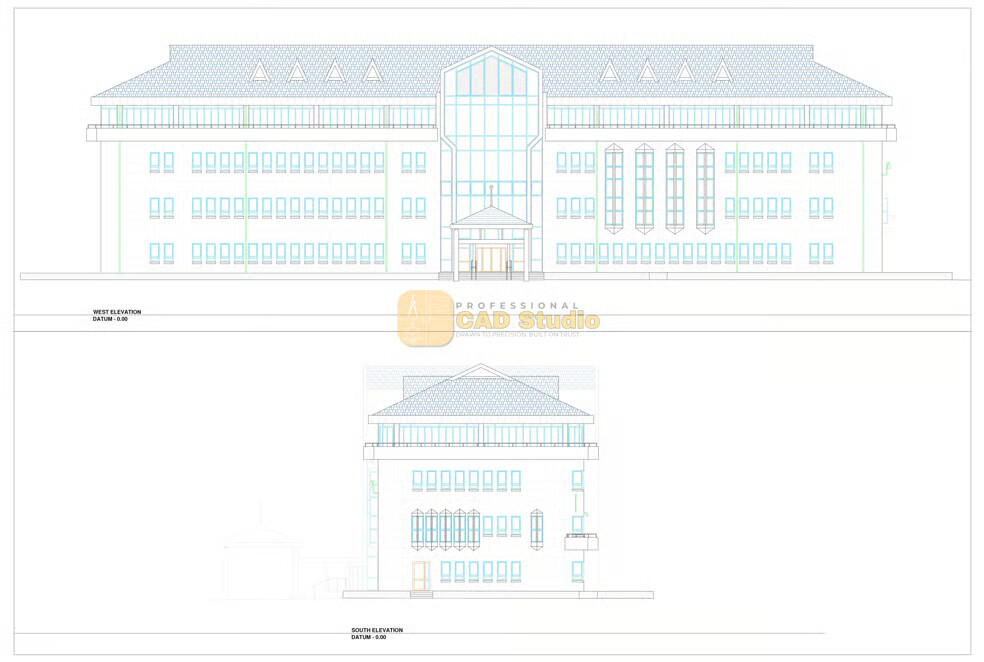

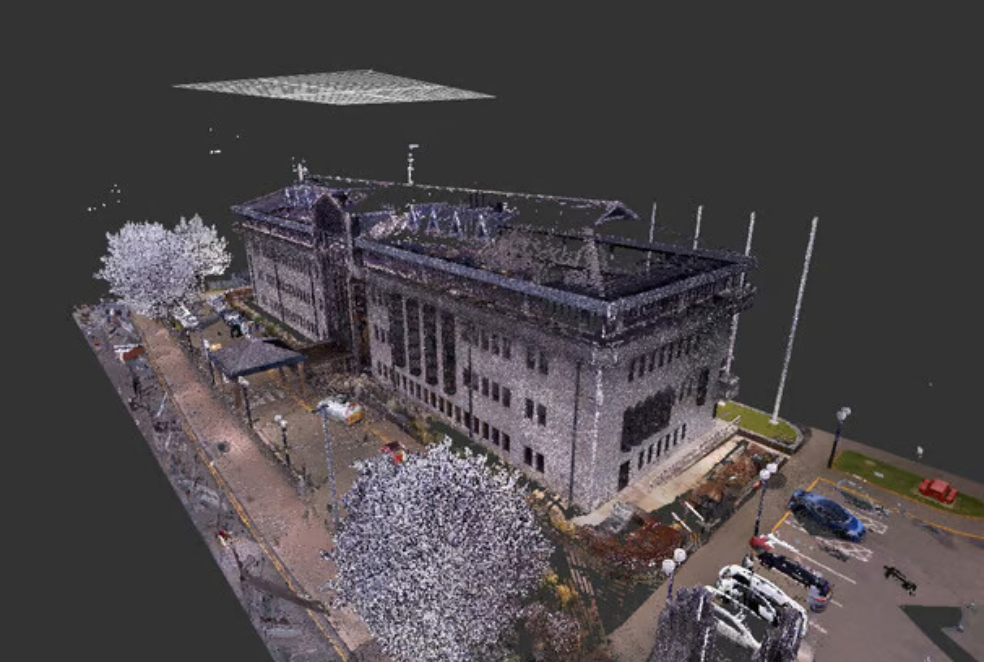

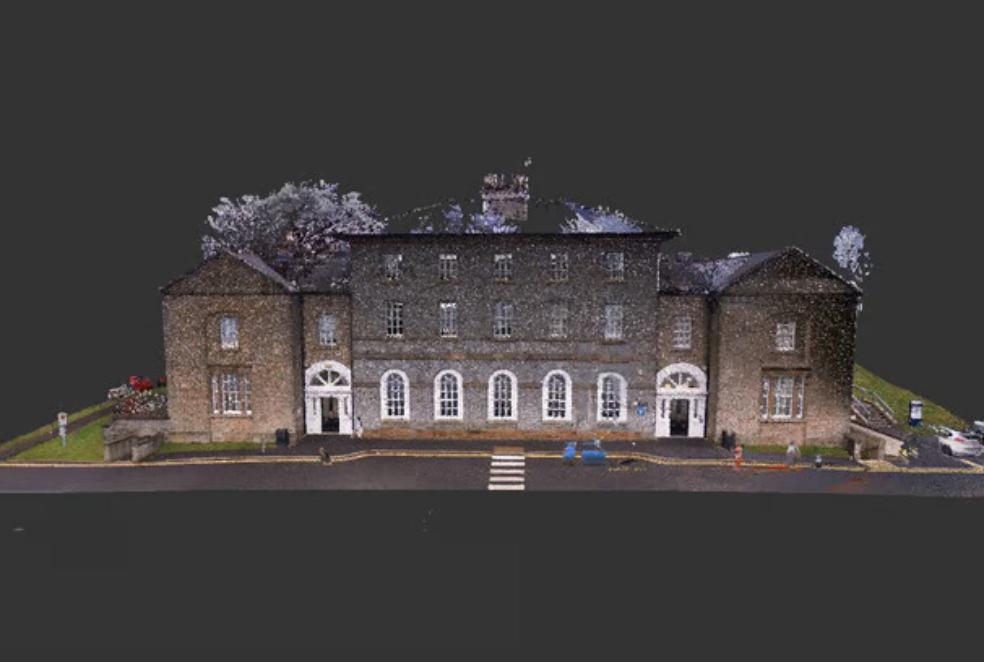

In this project, I was tasked with preparing precise 2D elevation views of multiple buildings at Ulster University. The raw data provided was in point cloud format, which I interpreted and translated into clear, scaled architectural elevations using AutoCAD.

Untitled design (7) dcsdc-AVL7kXbyJLTo16w4_converted
Untitled design (8) Untitled design (9)
mh-mk-buildings-A85eKyXlvNFakbWQ_converted mh-mk-buildings-mv0W6XrKVJcEy5LQ_converted

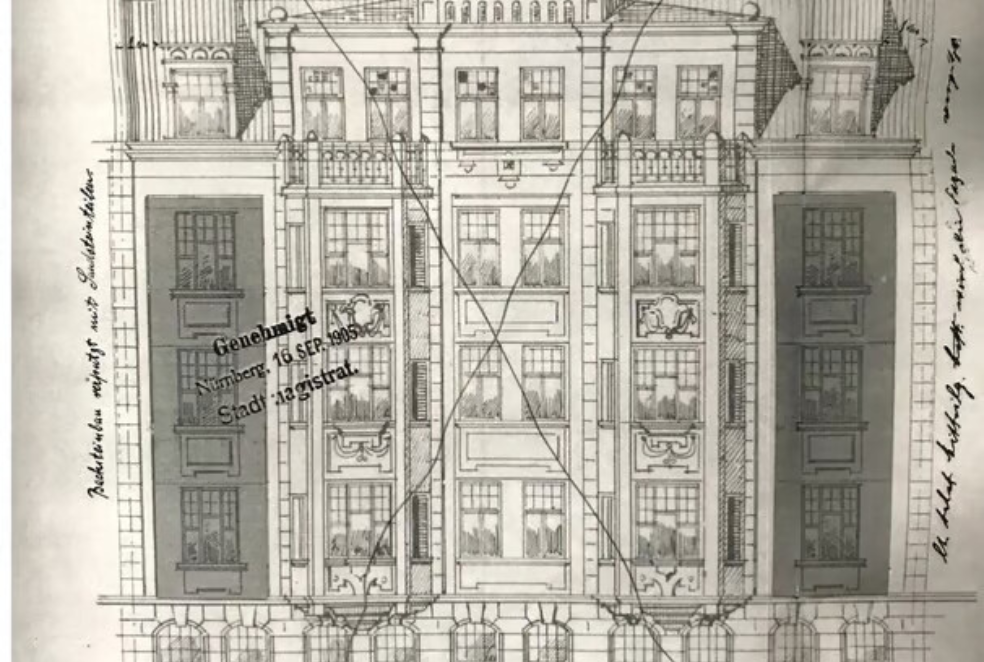

2D Elevation Views From Matterport/ Old Pdf

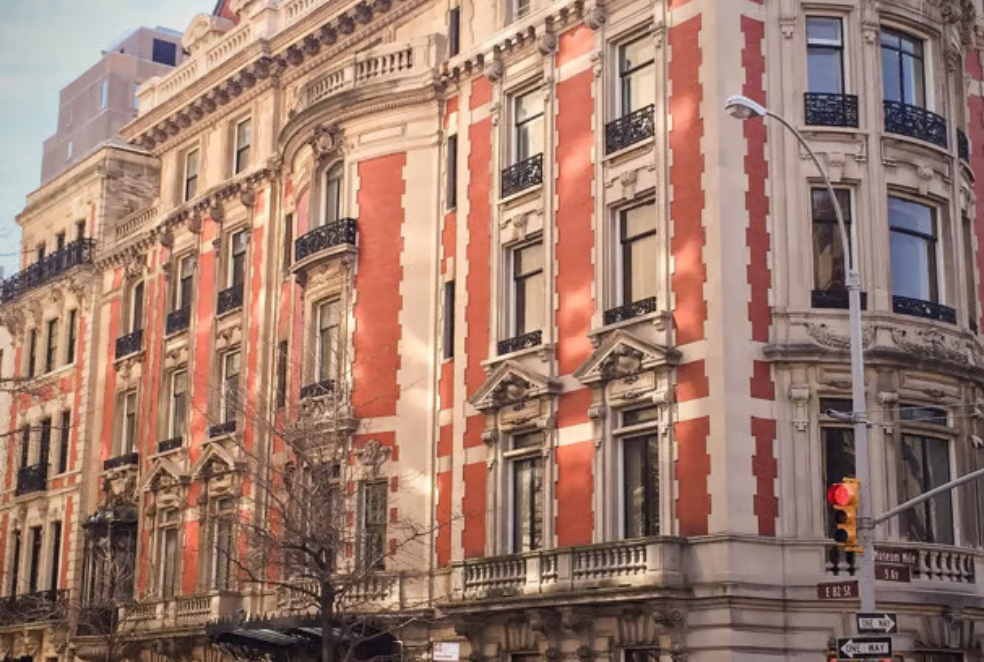

The Benjamin N. Duke House

Service Provided: 2D Elevation Views
Client: Philip (Architect)
Location: 5th Ave, New York, United States
Year: 2024

This project involved creating highly detailed elevation drawings of St. Eunan’s Cathedral, a historically significant structure. Using point cloud data captured on-site, I produced all four exterior elevation views, focusing on architectural accuracy and heritage preservation.

Untitled design (12) Untitled design (11)
Untitled design (14) Untitled design (13)
Residential Building

Service Provided: 2D Elevation Views from Old Pdf
Year: 2021

This project involved creating highly detailed elevation drawings of St. Eunan’s Cathedral, a historically significant structure. Using point cloud data captured on-site, I produced all four exterior elevation views, focusing on architectural accuracy and heritage preservation.

3D Modeling & Photorealistic Rendering

4242 Harding Blvd, Baton Rouge, LA

Service Provided: 3D Modeling & Photorealistic Rendering
Client: Confidential (via Fiverr)
Location: Baton Rouge, Louisiana, USA
Year: 2025

For this project, I was commissioned to develop a high-quality 3D model and photorealistic renderings of a commercial property located at 4242 Harding Blvd. The structure was already built; the task focused on visualizing the extension of the building, updated parking area, and revised landscape design based on approved plans provided by the client.


Untitled design (15) Untitled design (16)
Residential Building, Italy

Service Provided: 3D Modeling & Photorealistic Rendering
Client: Tiziano Radice
Year: 2022

This project involved the complete 3D modeling and rendering of an existing residential building and its surrounding landscape. The client, Tiziano Radice, supplied the approved floor plans and 2D elevation views, which were initially drafted from point cloud data. My role was to bring this data to life through detailed 3D visualization.
